Description
Tech Specs

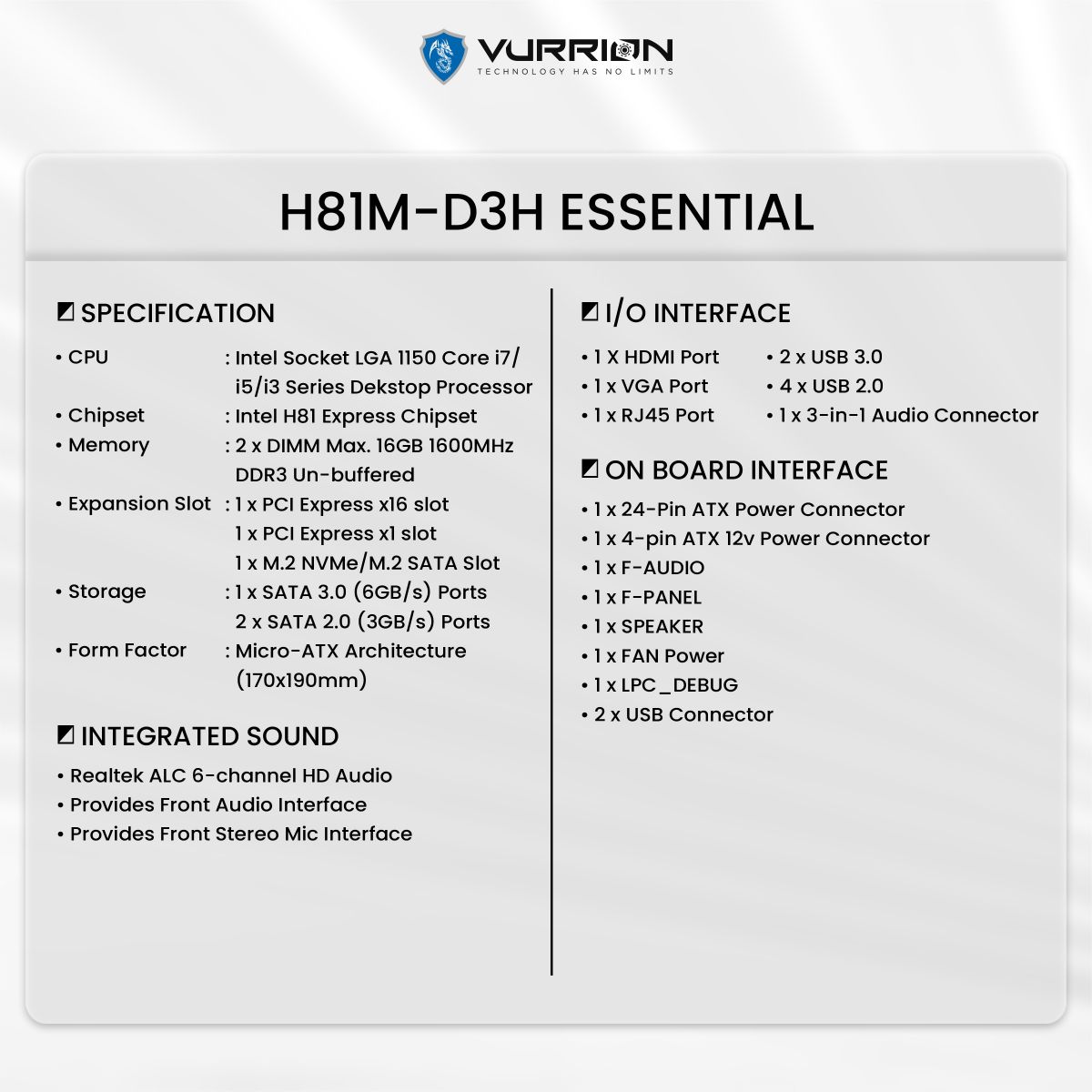

| CPU | Intel Socket LGA 1150 for 4th & 5th Generation |
| Chipset | H81 |
| Memori | 2X DIMM max.16GB DDR3 un-buffered |
| Slot Expansi | 1X PCI Express x16 slot 3.0 |
| 1 X M.2 Slot | |
| 1X PCI Express x1 slot | |
| Storage | 1 X SATA 3.0 (6GB/s) ports |
| 2 X SATA 2.0 (3GB/s) ports | |
| Lan | Gigabit LAN Controller(s) |
| Audio | Realtek ALC 6-Channel HD Audio |
| I/O Internal | 1 x CPU Fan connector(s) (4 -pin) |
| 1 x Chassis Fan connector(s) (4 -pin) | |
| 1 x 24-pin ATX Power connector(s) | |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x Front panel connector(s) | |
| 1 x Front panel audio connector(s) | |
| 1 x Internal speaker connector(s) | |
| 1 x Clear CMOS jumper(s) | |
| 1 X F-USB 3.0 | |
| 1 X F-USB 2.0 | |

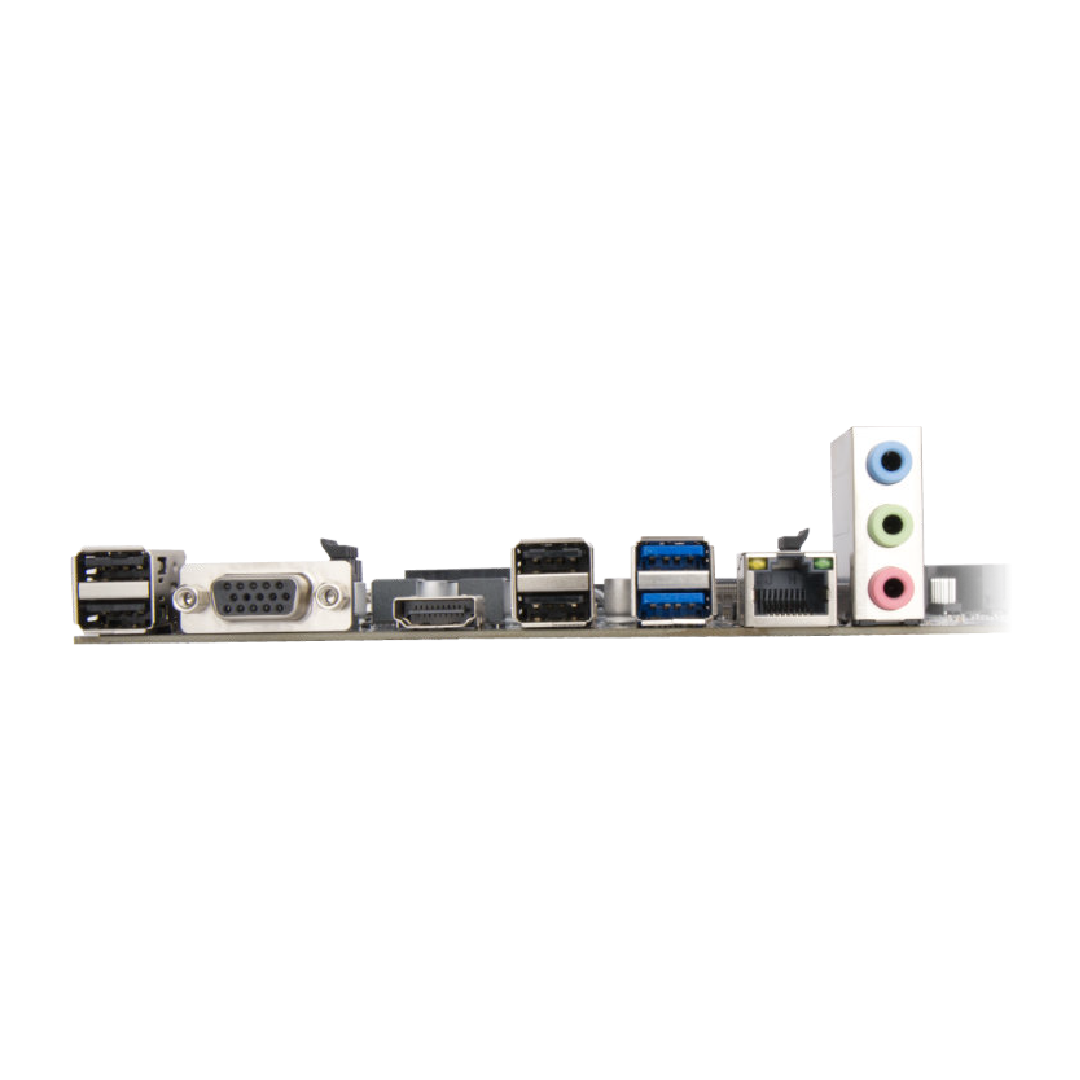

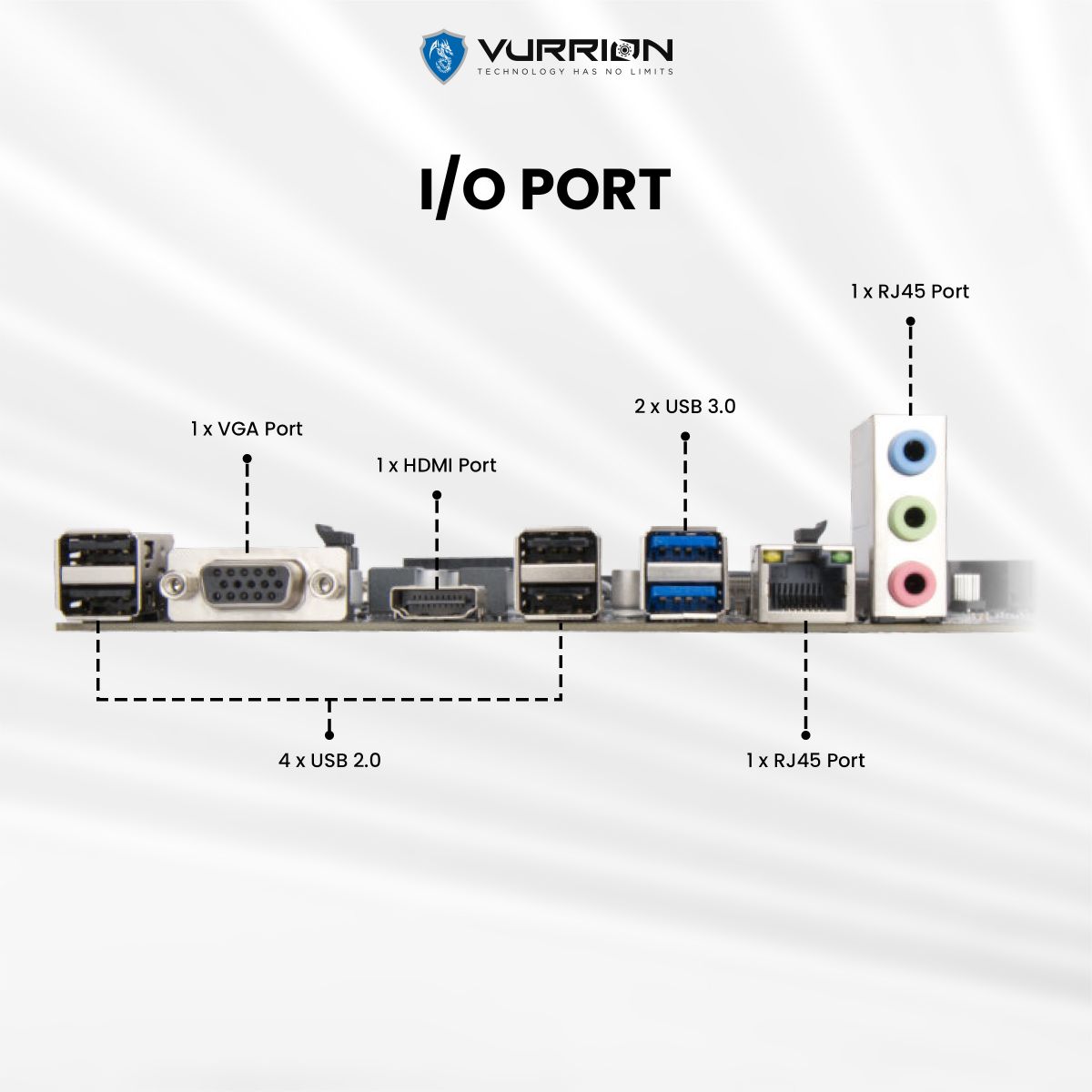

| I/O Port Back | 1 x VGA |
| 1 x HDMI | |
| 1 x LAN (RJ45) port(s) | |
| 4 x USB 2.0 | |
| 2 x USB 3.0 | |
| 1 x 3 Audio jack(s) | |
| Form Factor | Micro Atx architecture ( 170 X 190mm ) |
| Warranty | 2 Years warranty |
