Description
Tech Specs

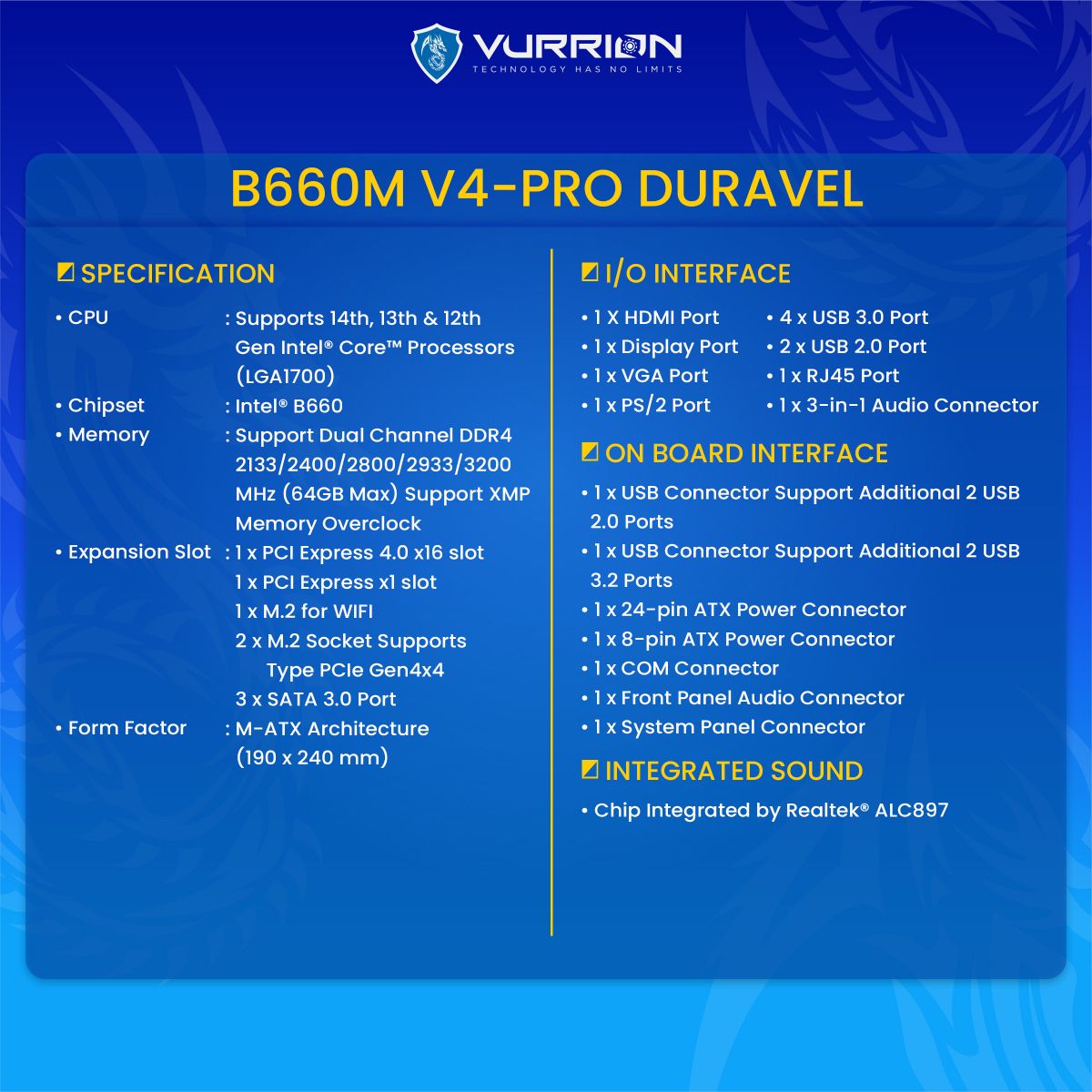

| CPU | Intel Socket LGA 1700 Core 12/13/14 Series desktop processor |
| Chipset | Intel B660 |
| Memori | 2X DIMM max.64GB DDR4 un-buffered |
| Slot Expansi | 1X PCI Express x16 slot |
| 2 X M.2 Slot Gen4x4 | |
| 1X M.2 FOR WIFI | |
| 1X PCI Express x1 slot | |
| Storage | 3 X SATA 3.0 ports |
| Lan | Gigabit LAN Controller(s) |
| Audio | Realtek ALC 6-Channel HD Audio |
| I/O Internal | 2 x M.2 NVME slot |
| 3 x SATA Slot | |
| 1 x CPU Fan connector(s) (4 -pin) | |
| 1 x Chassis Fan connector(s) (4 -pin) | |
| 1 x 24-pin ATX Power connector(s) | |
| 1 x 8-pin ATX 12V Power connector(s) | |
| 1 x Front panel connector(s) | |
| 1 x Front panel audio connector(s) | |
| 1 x Internal speaker connector(s) | |
| 1 x Clear CMOS jumper(s) | |
| 2 X F-USB 2.0 / USB 3.2 | |
| I/O Port Back | 1 x VGA |
| 2 x HDMI | |
| 1 x LAN (RJ45) port(s) | |
| 2 x USB 2.0 | |
| 4 x USB 3.0 | |
| 1 x Audio jack(s) | |
| Form Factor | Micro Atx architecture ( 190 X 240mm ) |
| Warranty | 2 Years warranty |
